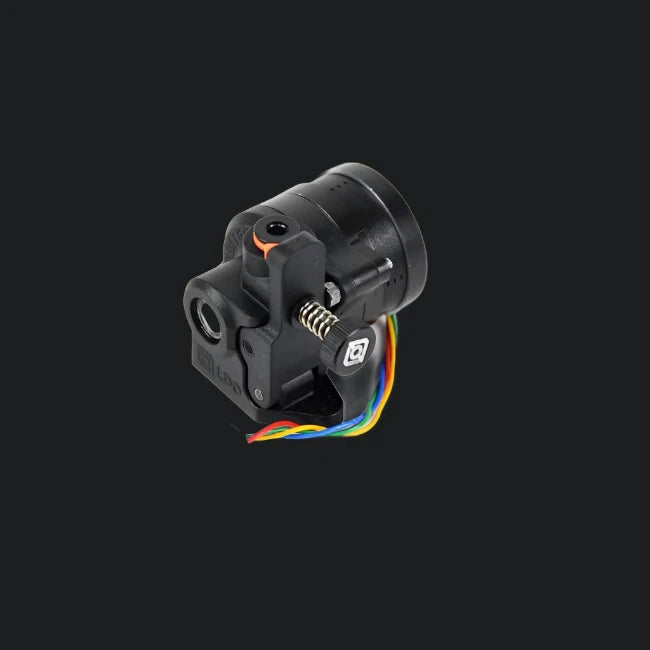

LDO Orbiter V2.0 Extruder

The LDO Orbiter V2.0 high precision direct drive extruder designed by Dr. Lorincz Rober in cooperation with LDO.

Features:

• Shorter drive gears 11mm vs 15 mm
• Hardened filament drive gears
• Weight reduced to 135 grams
• Smaller, more compact dimensions (11.6% shorter)

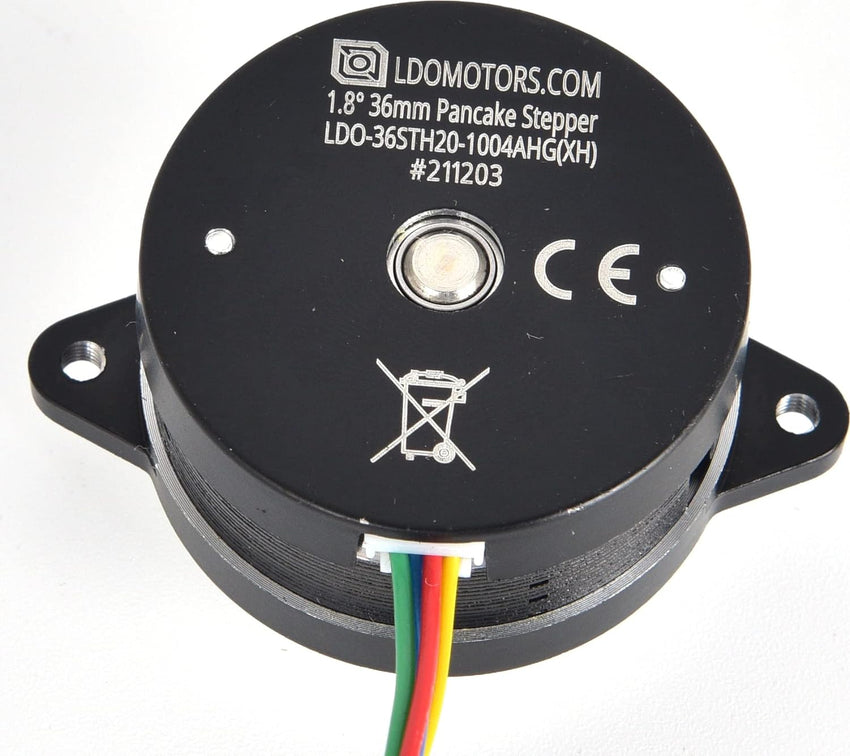

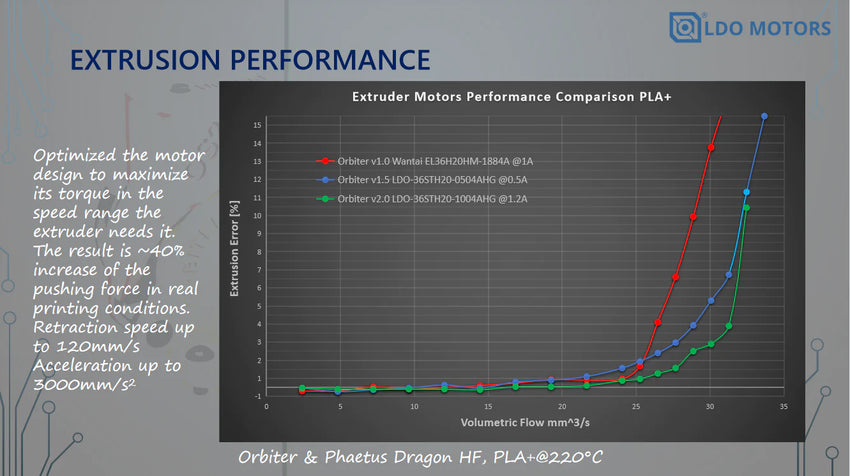

• New motor design offers 40% increase in pushing force in real printing conditions and much improved in acceleration performance

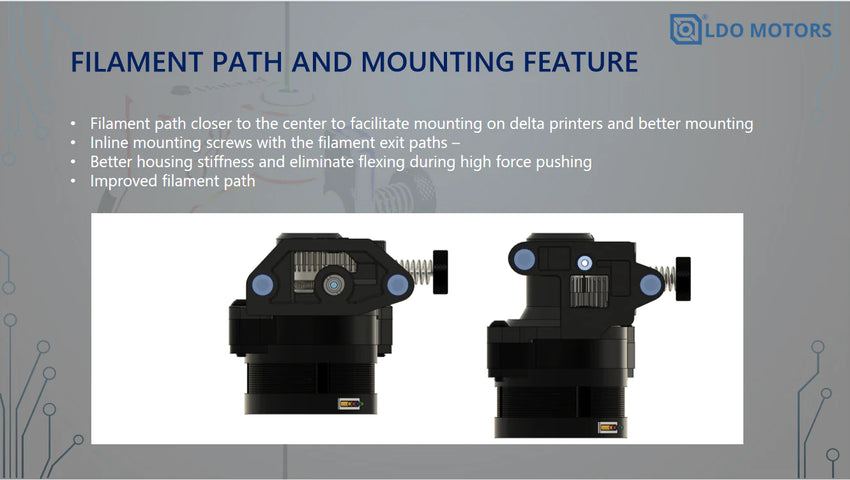

• Flipped drive gears - filament path closer to the extruder center for a more balanced design and perfect fit on delta printers as well

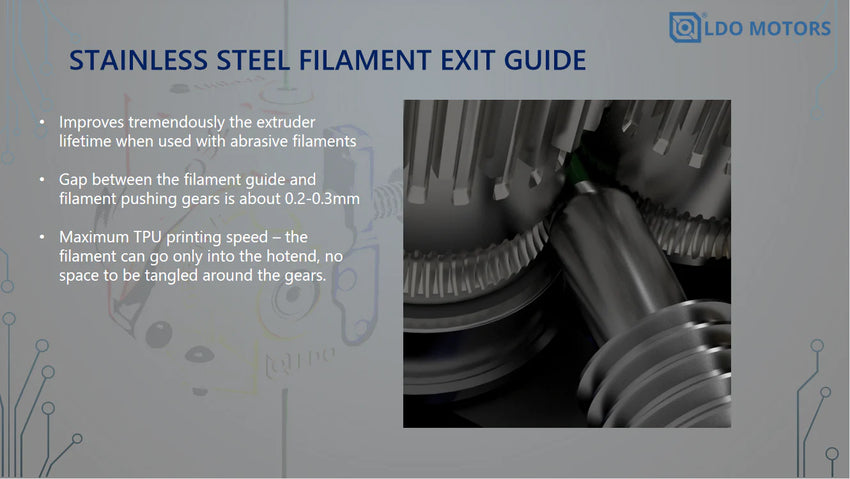

• Stainless steel filament exit guide with 0.2-0.3mm clearance to drive gears for best TPU printing experience and extreme wear resistance when using abrasive filaments
• High temperature resistant injected housings, GPA12
• Machined PEEK secondary drive gear sleeve
• Tension mechanism with grab screw design (Captive Grab Screw)
• Mounting screws in line with filament exit path - improving housing stiffness and easier mounting
• Perfectly aligned filament path
• New, smaller and better PTFE input coupler
• Motor position rotated by additional 10 degrees for easier maintenance and assembly
• Housing/latch manufactured by injection molding on standard version, MJF on mirrored version.
• And many more small changes to improve mechanical accuracy and design look
